Microscopes play a vital role in modern processes, especially in high-precision industries such as semiconductors, materials science, and precision manufacturing. Through microscope technology, engineers can observe the surface and structure of materials with nanometer-level precision, quickly detect tiny flaws and defects, and ensure the stability of product quality. Microscopes not only facilitate instant inspection during the production process, but also assist in the research and development of new materials and processes to improve manufacturing efficiency. Its application in quality control and failure analysis has become an indispensable part of precision manufacturing processes, helping companies reduce costs and improve yields.
Digital microscopes combine traditional microscope technology and digital imaging technology to directly convert the observed microscopic images into electronic data and display them on the screen. This kind of microscope not only provides high-resolution images, but also has real-time recording, image processing and sharing functions, and is widely used in education, research, industrial inspection and other fields.

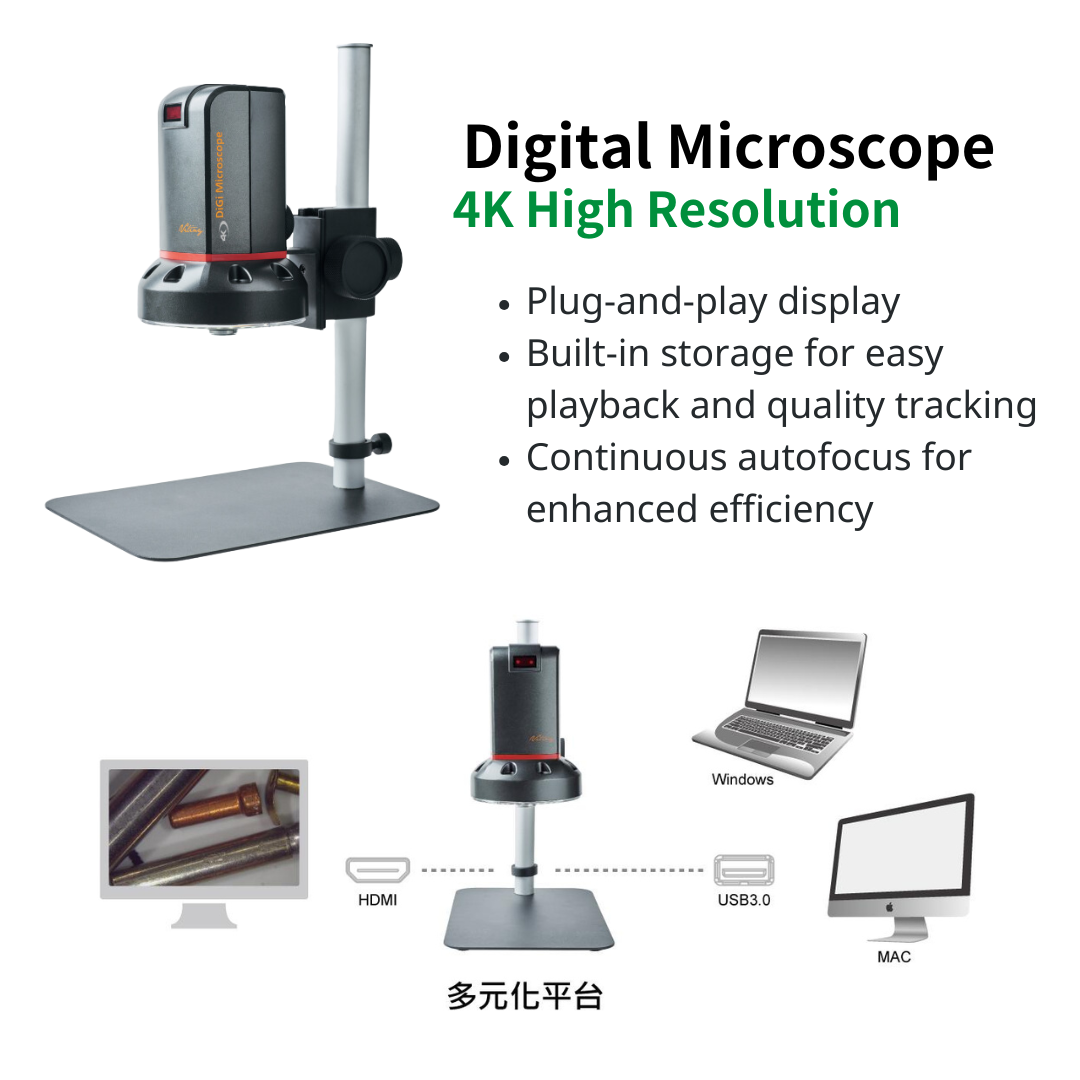

Special recommendation: 4K high-resolution microscope
● Specifications
Magnification
13x~140x (when the screen is 24 inches)
Working distance
2mm~214mm
Photosensitive element
4K Ultra HD resolution
Output interface
1080P Full HD signal output / USB 2.0/ Micro SD memory card slot
Focus system
Infrared remote control, optional manual and auto focus
Lighting
Built-in 30 wide-angle LED top-projection lights, adjustable brightness
Microscope size
Ø106 x 152(H)mm
Power supply
5V/2A, power cord length 180cm
Optional
10x objective lens: 497x magnification
This microscope is suitable for quick inspection of the production line. It can be directly connected to the screen and is plug-and-play. The stand-alone camera can take snapshots and save them, and directly connect them to a computer for playback. It helps track production quality. It also has a continuous auto-focus function to improve production efficiency.
The built-in high-definition high-quality 4K autofocus camera module uses back-illuminated CMOS technology to achieve high sensitivity and improve imaging quality under high ISO. At the same time, the CMOS photosensitive area is larger, fully absorbing large-angle incident light, and transmitting Through our optimized lens and chip position matching technology, noise and noise are greatly reduced, and image edge quality and depth of field are improved.
The standard 4x objective lens can reach 140x. By replacing the 10x objective lens, it can reach 497x, showing maximum cost-effectiveness.
Can be connected to Windows computers, Android tablets, and MAC computers via USB transmission cables. The diversified platform meets the needs of users.
Easy to operate: With the UMViewer computer software, it has expanded more Crosshairs functions, automatic ruler and compass correction system, automatic edge finding function, auxiliary magnifying glass and other functions.
Reference for actual shooting:
For other models, please refer to the link below: Digital Microscope.
Digital Microscope
AFM
Power Supply
Gold Plating Machine
Active Shock Absorber
Customized defect inspection equipment
MSP has obtained Dalian Teslaman Power Supply and entrusted it to act as an agent in Taiwan for its all series high-voltage power supply products. (Agent Certificate)
TXF1068
X-ray generator, nondestructive testing.
Teslaman TXF Series X-ray High Voltage Power Supply Set Standard 1.8 kW-6kW Compact High Performance X-ray High Voltage Power Supply. The output voltage ranges from 160kV to 450kV in negative, positive, or bipolar output configurations, and active power factor correction circuits reduce input current requirements while minimizing relative input correlation with EMI. USB Ethernet based on DSP control circuit to provide you with SMT selection. And RS-232 communication interface, as well as simulation simplifies OEM system integration. The two DC output, current-regulated filament power supply provides accurate and stable X-ray tube power supply through a complex emission current regulation control circuit.
The multi-turn potentiometer provided by the power supply can set the output voltage between 0V and the highest voltage.
External remote control
External 0 to 10V control signal can output from 0V adjust to the maximum output voltage.
Emission Current Control
Inside the power supply
The multi-turn potentiometer of the power supply can set the electron beam current from 0A to the maximum current.
External remote control
The external 0 to 10V control signal can set the electron beam current from 0A to the maximum current.
Voltage Regulation Rate
Relative load
± 0.1% (no load to rated load).
Relative input
± 0.1% (input voltage varies from 30% to 100% of rated output voltage).
Current Adjustment Rate
Relative load
0.05% (no load to rated load).
Relative input
0.05% rated output voltage exceeds the specified input voltage range.
Ripple Voltage
Peak-peak of ripple voltage under the condition of output rated voltage The value is 0.25% of the maximum output voltage.
Environmental
Operational
0 ℃ to + 50 ℃.
Storage
-20 ℃ to + 80 ℃.
Temperature Coefficient
0.5% per degree Celsius.
Stability
It is less than or equal to 0.1% every 8 hours after starting up for half an hour.
Overall Dimensions
770mm long, 422mm wide and 396mm high.
Connectors
High voltage output connectors- recessed epoxy insulated conduits and The penetrated high-voltage cable passes through metal with a diameter of 16mm. Connector connection. The total length of high voltage cable is 1m.
More
TXF1060
Plastic sorting, lattice inspection, film thickness measurement, mineral analysis, X-ray generator, X-ray diffraction
Teslaman TXF1060 suspended high voltage power supply series high voltage power supply is a special power supply for X-ray machines, with an output voltage of 70kV and a power of 300W and 600W. The TXF1060 is an X-ray system that integrates a wide input range, small form factor and multi-select digital communication interface.
Typical Application：Plastic sorting, lattice inspection, film thickness measurement, mineral analysis, X-ray generator, X-ray diffraction.
Features
Output voltage from 1kV to 70kV
Integrated adjustable filament power supply
overvoltage and output short circuit protection
voltage and current regulation functions
the emission current can be adjusted remotely
can be customized according to user requirements
Product Specifications
Product Specifications
Input
90~264VAC, 47~63Hz.
Output
-20kV, -30kV, -40kV, -50kV, -60kV, -70kV six maximum voltage output options.
Voltage control Local control
The power supply can be configured with a control panel, and the output can be adjusted locally with a potentiometer.
Voltage control Remote control
The power supply is equipped with a variety of digital communication interfaces, and the user can choose to use the required digital interface to complete the operation of the power supply on the host computer.
Emission current control Inside the power supply
0~10V control voltage corresponds to 10%~100% output current.
Emission current control External remote control
0~10V control voltage corresponds to 10%~100% output current.
DC filament power supply
the maximum output current is 5A adjustable, and the maximum output voltage is 10V.
Voltage regulation Relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation relative load
0.01% (no load to rated load).
Current regulation Relative input
±0.01% (input voltage change ±10%).
Ripple voltage
≤0.5% (>20kHz); ≤0.1% (<20kHz).
Ambient temperature
0 to +40°C during operation. Storage -40°C to +80°C.
Working temperature
20%~85%RH.
Stability
≤25ppm/hour (after preheating for 2 hours).
Dimensions
length 304.8mm, width 152.4mm, height 120.65mm.
High Voltage Output Connector
Claymount CA11 (Mini75).
Input and output connectors
DB9 RS232 serial communication, DB15 local control panel interface, USB digital communication interface, Ethernet digital communication interface.
More
TXR1010
Liquid level detection, film thickness measurement, PCB board detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Cathode grounded X-ray tubes from brands such as Keyiwei.
Teslaman TXR1010 series high-voltage power supply is a special power supply for X-ray machines. It integrates a filament power supply with an output DC voltage of 5.5V and an adjustable current of 0.3A to 3A. High voltage and filament current can achieve a linear and smooth rise. In addition, the bias power supply can make the X-ray focus better and make the image clearer. The TXR1010 series power supply can also be connected to an external potentiometer to realize remote control of output voltage and current, and has functions such as external voltage and current display, overvoltage and short-circuit protection at high-voltage output terminals, and safety interlock.
Typical Application：Liquid level detection, film thickness measurement, PCB board detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Cathode grounded X-ray tubes from brands such as Keyiwei.
Features
Output voltage from 20kV to 65kV
Integrated adjustable filament power supply
overvoltage and output short circuit protection
voltage and current regulation functions
the emission current can be adjusted remotely
safety interlock function
can be customized according to user requirements
Product Specifications
Input
24V±10% DC.
Output
20kV, 30kV, 50kV, 65kV four kinds of highest voltage output optional, 0V to the highest voltage adjustable.
Voltage control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the output voltage between 0V and the highest voltage.
Voltage control External remote control
An external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Emission current control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the beam current from 0A to the highest current.
Emission Current Control External Remote Control
An external 0 to 10V control signal can set the beam current from 0A to the highest current.
DC filament power supply
the maximum output current is 3.5A adjustable, and the maximum output voltage is 5.5V.
Voltage regulation Relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation relative load
0.01% (no load to rated load).
Current regulation Relative input
±0.01% (input voltage change ±10%).
Ripple voltage
Under the condition of output rated voltage, the peak-to-peak value of the ripple voltage is 0.25% of the highest output voltage.
Ambient temperature
0 to +50°C during operation. Storage -20°C to +80°C.
Temperature coefficient
0.01% per degree Celsius.
Stability
less than 0.05% every 8 hours after starting for half an hour.
Voltage and current indication
0 to +10V, 1% accuracy under rated output conditions.
Dimensions
length 254mm, width 100mm, height 160mm.
High-voltage output connector
The recessed plastic insulating conduit and the probing high-voltage cable are connected through a metal connector with a diameter of 16mm. The total length of the high voltage cable is 1 meter.
Teslaman TXR1012 series high voltage power supply is a special power supply for small volume X-ray machine.It integrates a filament power supply with an output DC of 5V and an adjustable current of 0.3 A to 3.5 A. High voltage and filament current can rise steadily.
TXR1012 series power supply can also be connected with external potentiometer to realize remote control of output voltage and current,and has the functions of external voltage and current display, high voltage output overvoltage and short circuit protection, safety interlock and so on. It can provide remote digital communication interface and realize RS-232 communication.
DB15 Rs-232 Or Rs-485 Communication Policy Available
OEM customized available
Product Specifications
Input
DC24V ± 10%.
Output
50kV/65kV at 0 to 2mA to a maximum of 65 watts.
Voltage control
Inside the power supply
The multi-turn potentiometer of the power supply can set the output voltage between 0 and the highest voltage.
External remote control
The external 0 to 10V control signal can adjust the output from 0 to the maximum output voltage.
Emission current control
Inside the power supply
The multi-turn potentiometer of the power supply can set the electron beam current from 0 to the highest current.
External remote control
The external 0 to 10V control signal can set the electron beam current from 0 to the highest current.
DC filament power supply
The output current is 3.5A adjustable and the voltage is 5V adjustable.
Voltage regulation
Load
0.01% of output voltage no load to full load.
line
±0.01% for ±10% change in input voltage.
Current adjustment
load
0.01% of output current from 0 to rated voltage.
line
±0.01% for ±10% change in input voltage.
Ripple voltage
Under rated output conditions, the peak-to-peak value of ripple voltage is 0.1% of the maximum output voltage.
Environmental
Operational 0 ℃ to + 50 ℃. Storage -40 ℃ to + 85 ℃.
Temperature coefficient
below 100ppm/℃.
Stability
less than 0.1% every 8 hours after 1/2 hour warm-up.
Voltage and current monitors
0 to + 10Vdc proportional 0 to rated output. Accuracy ± 1%.
Dimensions
50kV
73.5 mm wide, 127mm high and 203.5 mm deep.
50kV(SIC options)
73.5 mm wide, 145mm high and 203.5 mm deep.
65kV(SIC options)
73.5 mm wide, 145mm high and 228 mm deep.
High Voltage Connector
The power supply comes standard with a recessed epoxy insulated duct and a probed high voltage cable connected by a 16mm diameter metal connector. Standard high voltage cable is 1 meter long, and other specifications of cables or joints can be customized.
Optional features
XCC XRM Compatible HV Cable GB Grid bias SIC Standard interface control
Teslaman TXR1020 series high-voltage power supply is equipped with digital voltage and current indicators, which can be installed in a 19" standard cabinet. It can achieve a linear and stable rise of high-voltage output. The TXR1020 series power supply can also be connected to an external potentiometer to realize remote control of output voltage and current. And it has the functions of external voltage and current display, high voltage output with overvoltage and short circuit protection, safety interlock, etc. TXR1020 can also be used in X-ray machines, choose to increase the output DC voltage 0~5.5V current 0.3A to 10A optional filament Power supply. Note: Teslaman TXR1020 series high voltage power supply is only suitable for fixed load, not less than one-fifth of the rated load.
The highest voltage output from 1kV to 150kV is optional, and the 0V to the highest voltage is adjustable.
Voltage Control Power Panel
The multi-turn potentiometer that comes with the power panel can set the output voltage between 0V and the highest voltage.
Voltage control External remote control
An external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Tube current control (X-ray machine application) Power panel
The multi-turn potentiometer that comes with the power supply can set the electron beam current from 0A to the highest current.
Tube current control (X-ray machine application) External remote control
The external 0 to 10V control signal can set the electron beam current from 0A to the highest current.
Voltage regulation Relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation relative load
0.01% (no load to rated load).
Current regulation Relative input
±0.01% (input voltage change ±10%).
Ripple voltage
under the premise of outputting the rated voltage, the peak-to-peak value of the ripple voltage is 0.1% of the highest output voltage (smaller ripple is optional).
Ambient temperature
0°C to +45°C during operation. Storage -20°C to +80°C.
Temperature coefficient
0.01% per degree Celsius.
Stability
less than 0.1% every 8 hours after starting for half an hour (higher stability optional).
Voltage and current indication
0 to 10V, 1% accuracy under rated output conditions.
The recessed epoxy resin insulating conduit and the probing high-voltage cable are connected through a metal connector with a diameter of 16mm. The effective length of the high-voltage cable is 1 meter.
Input and output connectors
20-pin terminal block contains control and display signals.
Remote control of output voltage and current
An external potentiometer can be used to remotely control the output voltage and current using the power supply 10W-300W, 1kV to 150kV, high precision, digital voltage and current indication, and the internal 10V voltage reference.
Remote voltage and current indication
The 20-pin terminal block contains 0 to 10V voltage and current indication signals, which can be connected to various digital or pointer meters.
More
TXR1025
X-ray machine, high-energy particle injection, Hi-POT test, high voltage capacitor charging, scientific research, etc.
The Teslaman TXR1025 series is a high-performance 19" standard rack-mounted high-voltage power supply. It can integrate a filament power supply with an output DC voltage of 5.5V and a current of 0.3A to 3A. The high voltage and filament current can be linearly and smoothly increased. The TXR1025 series power supply also An external potentiometer can be connected to realize remote control of output voltage and current, and it has functions such as external voltage and current display, overvoltage and short-circuit protection at high-voltage output terminals, and safety interlock.
Typical Application：X-ray machine, high-energy particle injection, Hi-POT test, high voltage capacitor charging, scientific research, etc.
Features
Output voltage from 5kV to 150kV
Integrated adjustable filament power supply
Overvoltage
overcurrent and output short circuit protection
voltage and current regulation functions
can adjust the voltage and current remotely
safety interlock function
can be customized according to user requirements
Product Specifications
Input
AC220±10%.
Output
10kV to 150kV and other maximum voltage output optional, 0V to the highest voltage adjustable.
Voltage control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the output voltage between 0V and the highest voltage.
Voltage control External remote control
An external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Tube current control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the beam current from 0A to the highest current.
Tube current control External remote control
The external 0 to 10V control signal can set the beam current from 0A to the highest current.
DC filament power supply
The output current is 4A adjustable and the voltage is 5.5V.
Voltage regulation Relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation relative load
0.01% (no load to rated load).
Current regulation Relative input
±0.01% (input voltage change ±10%).
Ripple voltage
Under the condition of outputting the rated voltage, the peak-to-peak value of the ripple voltage is 0.1% of the maximum output voltage.
Ambient temperature
0 to +50°C during operation. Storage -20°C to +80°C.
Temperature coefficient
0.01% per degree Celsius.
Stability
less than 0.05% every 8 hours after starting for half an hour.
Voltage and current indication
0 to +10V, the accuracy is 1% under rated output conditions.
Dimensions
width 482.6mm, height 132.6mm, depth 440mm.
High-voltage output connector
The recessed epoxy resin insulating conduit and the probing high-voltage cable are connected through a metal connector with a diameter of 16mm. The total length of the high voltage cable is 1 meter.
Input and output connector
DB25, contains control and display signals.
Remote control of output voltage and current
An external potentiometer can be used to remotely control the output voltage and current using the 10V reference voltage inside the power supply.
Remote voltage and current indication
The 25-pin terminal block contains 0 to 10V voltage and current indication signals, which can be connected to various digital or pointer meters.
More
TXR1110
Liquid level detection, film thickness measurement, PCB board detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Cathode grounded X-ray tubes from brands such as Keyiwei.
Teslaman TXR1110 series high-voltage power supply is a special power supply for X-ray machines. It integrates a filament power supply with an output DC voltage of 5.5V and an adjustable current of 0.3A to 3.5A. High voltage and filament current can achieve a linear and smooth rise. In addition, the bias power supply can make the X-ray focus better and make the image clearer. The TXR1110 series power supply can also be connected with an external potentiometer to realize remote control of output voltage and current, and has functions such as external voltage and current display, overvoltage and short circuit protection at high-voltage output terminals, and safety interlock.
Typical Application：Liquid level detection, film thickness measurement, PCB board detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Cathode grounded X-ray tubes from brands such as Keyiwei.
Features
Output voltage from 20kV to 65kV
Integrated adjustable filament power supply
overvoltage and output short circuit protection
voltage and current regulation functions
the emission current can be adjusted remotely
safety interlock function
can be customized according to user requirements
Product Specifications
Input
24V±10% DC.
Output
20kV, 30kV, 50kV, 65kV four kinds of highest voltage output optional, 0V to the highest voltage adjustable.
Voltage control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the output voltage between 0V and the highest voltage.
Voltage control External remote control
An external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Emission current control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the beam current from 0A to the highest current.
Emission Current Control External Remote Control
An external 0 to 10V control signal can set the beam current from 0A to the highest current.
DC filament power supply
the maximum output current is 3.5A adjustable, and the maximum output voltage is 5.5V.
Voltage regulation Relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation relative load
0.01% (no load to rated load).
Current regulation Relative input
±0.01% (input voltage change ±10%).
Ripple voltage
Under the condition of output rated voltage, the peak-to-peak value of the ripple voltage is 0.25% of the highest output voltage.
Ambient temperature
0 to +50°C during operation. Storage -20°C to +80°C.
Temperature coefficient
0.01% per degree Celsius.
Stability
less than 0.05% every 8 hours after starting for half an hour.
Voltage and current indication
0 to +10V, the accuracy is 1% under rated output conditions.
Dimensions
length 254mm, width 100mm, height 160mm.
High-voltage output connector
The recessed epoxy resin insulating conduit and the probing high-voltage cable are connected to the high-voltage cable with a total length of 1 meter through a metal connector with a diameter of 16mm.
More
TXR1017
Thickness measurement, PCB detection, Liquid level detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Keyiwei and other brands of cathode grounded X-ray tubes.
eslaman TXR1017 series high voltage power supply is a special power supply for small volume X-ray machine. It integrates a filament power supply with an output DC of 5V and an adjustable current of 0.3 A to 3.5 A. High voltage and filament current can rise steadily. TXR1017 series power supply can also be connected with external potentiometer to realize remote control of output voltage and current, and has the functions of external voltage and current display, high voltage output over-voltage and short circuit protection, safety interlock and so on. It can provide remote digital communication interface and realize RS-232 / RS-485 communication.
Typical Application：Thickness measurement, PCB detection, Liquid level detection, Kevex, Oxford, RTW, Superior, Varian, Trufocus, Keyiwei and other brands of cathode grounded X-ray tubes.
Features
Maximum output voltage 20kV
Integrated adjustable filament power supply
overvoltage and output short circuit protection
voltage and current regulation functions
the emission current can be adjusted remotely
safety interlock function
OEM customization available
Product Specifications
Input
DC24V±10%.
Output
A variety of maximum output voltages from 1kV to 20kV are optional, and the maximum output power is 50W. 0 to the highest voltage continuously adjustable.
Voltage control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the output voltage between 0 and the highest voltage.
Voltage control External remote control
An external 0 to 10V control signal can adjust the output from 0 to the highest output voltage.
Emission current control Inside the power supply
The multi-turn potentiometer that comes with the power supply can set the beam current from 0 to the highest current.
Emission current control External remote control
External 0 to 10V control signal can set the beam current from 0 to the highest current.
DC filament power supply
The output current is adjustable at 3.5A, and the voltage is adjustable at 5V.
Voltage regulation relative load
0.01% (no load to rated load).
Voltage regulation Relative input
±0.01% (input voltage change is ±10%).
Current regulation rate Relative load
0.01% (no load to rated load).
Current regulation rate Relative input
±0.01% (input voltage change is ±10%).
Ripple voltage
Under rated output conditions, the peak-to-peak value of the ripple voltage is 0.1% of the maximum output voltage.
Ambient temperature
0°C to +50°C during operation. Storage -40°C to +85°C.
Temperature coefficient
less than 25ppm/℃.
Stability
less than 0.02% every 8 hours after power on for 0.5 hours.
Voltage and current indication
0 to +10V, representing 0 to rated output, with an error of ±1%.
Dimensions
Standard size
High-voltage connector
The power supply comes standard with a recessed epoxy resin insulating conduit and the probing high-voltage cable is connected through a metal connector with a diameter of 16mm. The standard high-voltage cable is 1 meter long, and other specifications of cables or connectors can be customized.
More
TXF1210
Scanning electron microscope (SEM), Electron beam controller.
The Teslaman TXF1210 Series is an integrated, multi-output high voltage power supply designed specifically for scanning electron microscope (SEM) drivers. The acceleration section is a highly stable 30kV power supply, integrated with suspended filament lamp source, lead-out power supply and suppression power supply, which can be installed in a 19-inch rack. All outputs provide ultra-low output ripple, minimal micro-discharge, excellent regulation, stability, temperature coefficient and precision specifications for higher image quality and resolution requirements. Suspended power supply is provided through Teslaman's proprietary high voltage isolation technology. Customer control of this integrated TXF1210 power supply system is accomplished through optical fiber RS-232 interface. All security interlocks are based on fail-safe hardware design. UL and CE certification can be carried out.
Typical Application：Scanning electron microscope (SEM), Electron beam controller.
Features
Integrated Tetrode Power Supply for Field Emission Scanning Electron Microscope
Extremely Low Ripple And Ultra-Stable Output
With Arc And Short Circuit Protection
Minimized Micro-Discharge Design
Optically Isolated Digital Interface
Product Specifications
Input
+ 24VDC, ± 5%, 4A. Surge current < 6A is suitable for 1 second.
Vacuum interlocking device
Vacuum interlocking is an optical interlocking, which works when light exists in optical fiber. When no light is present, this interlock does not work and this power supply turns off all outputs.
Front Panel Indication
Turn on
A green LED indicates the presence of + 24V power supply. It will be lit in the range of 22.8 to 25.2 V, and will flash for 1 second when it exceeds the range.
Vacuum Interlock
Yellow LED indicates that vacuum interlock is closed. The vacuum interlock must be lit to generate high pressure.
Test GUI
A product GUI can be provided free of charge to customers for testing and development work.
Protection
All outputs are protected against arc in the load and continuous short circuit to ground and each other. All low voltage inputs have over-voltage protection of ± 30V. The power input has over-voltage protection and reverse connection protection. If BeamEnergy has more than a 'A' arc during a nominal 'B' time (seconds), the unit will disable all outputs and set all programming to zero. If there are fewer than 'A' arcs, the unit will continue to run. The default values are A=8 and B=10. Both 'A' and 'B' can be set through optical bus commands and GUI. If the over-temperature condition exceeds 10 seconds, all outputs will be disabled. This unit reports fault or trip conditions through status flags. After a trip occurs (arc, over-current, over-voltage, over-temperature, etc.), the unit can be reset by software (fiber bus command) or power cycle.
Ambient Temperature
Working time
+ 10 ℃ to + 45 ℃. Storage
Humidity
0 to 80% relative humidity, no condensation.
Machinery
This unit is equipped with a pair of detachable mounting flanges; These allow this unit to be installed in a 19 rack system.
Overall Dimensions
The width is 482.6 mm, the height is 133.4 mm and the depth is 360.5 mm.
Weight
About 20kg.
More
TXB1810
Thickness measurement, food inspection, liquid level detection,package inspection X-ray scanning - bone density measurement
TXB1810 Series of X-rays High-Voltage power supply rated output voltage is 80kV and the power is 100W.Built-in ray tube. Product Small size, with Standard analog interface and RS-232 digital interface and other features can be easy integrated into your X-ray system. The proprietary emission control circuit provides excellent X-ray tube current management and excellent stable performance.
Typical Application：Thickness measurement, food inspection, liquid level detection,package inspection X-ray scanning - bone density measurement
Features
Integrated high-voltage power supply
filament power supply
X-ray tube
beam port and electronic controller in one
Compact model and light weight
Universal input
correcting the power factor through the internal EMI filter
It can be installed in any physical position.
Analog control interface and standard RS-232 digital interface
Product Specifications
Input voltage
The power factor correction input is 0.98, 100-240Vac±10%, 50-60Hz,maximum 2A.
X-ray tube voltage
X-ray tube voltage adjustable,0 Up to 80kV.
X-ray tube current
Within the specified ray tube voltage range, the current of the ray tube is from 150 μA to 1.25 mA Adjustable.
X-ray tube power
Maximum continuous power 100W。
Voltage regulation
Input
When the specified input voltage of ±10% changes, the change of the maximum output voltage is ±0.05%.
Load
Electric current from 150 μA to 1.25mA changes, the voltage changes by ±0.1% of the maximum rated voltage.
Voltage accuracy
The error of the voltage measured by the X-ray tube is ±2%.
Voltage rise time
Standard
The maximum rated output voltage is from 10% to 90%, and the rise time should be 500 ms Optional 5 seconds.
Ripple
Under the rated output condition, it is better than 1% p-p (0.1% p-p optional).
Current regulation
Input
When the rated input voltage of ±10% changes, the change of the rated output current is ±0.05%.
Load
When the rated output voltage changes from 50% to 100%, the rated output current changes by ±0.1%.
Current accuracy
The error of the current measured by the X-ray tube,Better than±2%.
Current rise time
Standard
When the maximum rated current changes from 10% to 90%,the rise time less than 500ms。
Optional.
5 seconds.
Analog interface
The ground reference 0 to 9VDC is used for all programming signals and monitoring signals. Relay contacts and collector open signals are used as other signals. See the analog interface connector pin table.
Digital interface
To enable the RS232 interface, you need to configure the jumper and install the digital interface cable control software.。
Ambient temperature
Operational 0℃Up to +40℃.
Storage
-40℃Up to +70℃。
Humidity
The relative humidity is 10% to 95%, and there is no condensation.
Cooling
Forced air and natural convection augmented by customer provided external cooling fan to maintain oil temperature below 55°C.Analog interface connector
Digital interface connector
9-pin D-type connector, female.
Ground
8-32 grounding studs are available on the chassis.
Dimensions
See figures
Weight
14.5Kg.
More
TXP1310
乳腺机
泰思曼TXP1310系列是一款高性能、低成本的乳腺成像 X射线高压电源。 此款高压电源集成了双灯丝电源和一个双速启动器。直流灯丝电源具备快速响应能力,可为 X射线管提供稳定、精确的管发射电流。高压部分采用固体封装的方式，更加稳定与便捷。 通过 RS-232 或可选的以太网接口进行通讯控制。TXP1310 支持先进的乳腺摄影成像应用功能，包括：智能AEC曝光、灯丝自动校准、射线管阳极热量计算、可匹配各类射线管。体积紧凑、功能全、性能高、成本低，是泰思曼TXP1310成为新一代乳腺摄影成像 X 射线高压电源的根本原因。
Specialized software: length, angle, circle area... and other measurement modes, all with one machine in hand, observation, recording and comparison can be done at once
Specialized software: length, angle, circle area... and other measurement modes, all with one machine in hand, observation, recording and comparison can be done at once
Product features
10x to 200x multi-step manual focus
Five million ultra-high pixels, providing the most perfect picture
Adjustable LED light source, accurate and bright images
MicroViewer Plus dedicated computer software
Quickly take photos with one click
Handheld / special base dual use
Special software: length, angle, circle area, and other measurement modes, all with one machine in hand, observation, recording and comparison can be done at once
Light hood: Highly reflective, it can soften LED light and achieve uniform light effect
Product specifications
Product Model
DMC-1613
Image sensor
1/4" CMOS high-color image sensor
Total pixels
Five million pixels
Signal output
USB2.0 compatible streaming data
Image processing technology
Automatic white balance (AWB) & automatic gain control (ACG)
Magnification
10~200 times
Snapshot mode
Software or hardware control
Power number
DV 5V/260mA(Max)
Supported systems
Window 7 or above, Mac 10. 11 or above
Package contents
USB digital microscope/fine-tuning stand/instruction manual (software authorization code included)
Details
LCD digital screen microscope
The best solution to replace traditional microscopes
The best solution to replace traditional microscopes
Product features
Image conversion: large screen, easy to share and display
Image storage: can be used as product history, can transfer records
Built-in battery for portable use
Additional camera cable keeps images stable and prevents camera shake
Better image depth and three-dimensionality
There are also various accessories to facilitate different operating needs
Different models of magnification to match the observed objects
Product specifications
Product model
PMC-1132 / PMC-1122
Magnification
8-25 times / 3-8 times
Sensor
2 million pixels, CMOS Sensor
Effective pixels
1920(H) x 1080(V)
LCD display
5" color TFT LCD
Interface
Mini USB, Type A HDMI
Battery
2600mAh rechargeable lithium battery 18650
Dimensions
145x148x78 mm
Weight
About 317g
Details
Digital screen magnifying glass
Processing small key details can make the eyes more comfortable and digitize visual work
Processing small key details can make the eyes more comfortable and digitize visual work
Product features
Details
EasyZoom ultra-depth of field digital microscope
Single lens body achieves 50~5800 times magnification
New product
Single lens body achieves 50~5800 times magnification
Product features
Vivid and clear 3D imaging only with ultra-depth of field
Intelligent and smart optical system
A zoom lens achieves 50x-5800x conversion
Can be easily observed within a wide range and angle of 150°
Automatically adjust light source function
Details
Nanoview1000, Nanoview2000
Provide three-dimensional surface morphology images, including surface roughness, particle size, height difference and spacing
Beginners can complete all settings within three minutes, and in about 5-10 minutes, they can obtain a high-resolution image that can be placed on paper. It has been designated and approved for use by many first-level research institutions.
Four major features:
Excellent performance and high stability
High shock-proof performance, no need to purchase an additional optical shock-proof table, testing can be done at any time and anywhere
Extremely convenient operation, quick start-up operation, no maintenance required
Expandable liquid module, atmosphere and temperature control module
Product features
Can quantify surface morphology characteristics (roughness, length, width and height)
LFM mode friction/side force, Phase mode amplitude/phase, MFM mode magnetic force and EFM mode electrostatic force distribution measurement
Accessory selection
Liquid module, temperature control module, atmosphere module
Sample size
Φ≤90mm, H≤20mm
Scan range
XY to 20um, Z to 2um (optional or additional XY to 10um, 50um or 100um, Z to 1um, 5um or 10um scanner)
Scan resolution
XY to 0.2nm, Z to 0.05nm
Sample movement range
0~13mm
Optical magnification 4X
Optical resolution 2.5um
Scan speed
0.6Hz~4.34Hz, scanning angle 0~360°
Scan Control
XY uses 18-bit D/A, Z uses 16-bit D/ A
With high-efficiency suspension and anti-shock system, moisture-proof and soundproof box
Details
SBC-12 entry-level gold plating machine
Use this equipment to coat the surface of the material with a thin conductive metal layer, which not only improves the conductivity and flatness of the material, but also inhibits the oxidation of the material; it can also be used as a material treatment before electron microscopy observation.
Use this equipment to coat the surface of the material with a thin conductive metal layer, which not only improves the conductivity and flatness of the material, but also inhibits the oxidation of the material; it can also be used as a material treatment before electron microscopy observation.
Product features
This is a simple and durable gold plating and pre-treatment equipment with the following features:
Simple and convenient operation, quick to get started
High stability and security
Research units are designated as the first choice
Extremely cost-effective
Product specifications
Cavity size
∮100mm; 130mm High.
Specimen stage size
∮40mm( Hold 6 specimen cups)
Gold target size
∮57mm
Vacuum detection
Pirani gage
Vacuum reachable range
20 pa with microscale inflation valve
Can pass into medium gas
Argon or air with argon gas special air inlet and gas regulating in microscale.
Voltage
220V
Choose target materials
Gold, platinum, silver, titanium, aluminum, etc., if there are special needs You can contact us for consultation.
Details
Active shock absorber
Electronic active vibration isolation platform, quickly filter out low-frequency to high-frequency vibrations
Multiple applications:
AFM (atomic force microscope), white light interferometer, ellipsometer, optical 3D microscope, laser scanning microscope, Raman microscope, nanoindentation instrument, SEM (scanning electron microscope), profilometer, thermal analyzer, water contact angle Measuring instruments, etc.
Product features
German craftsmanship, the world’s leading brand
The operation interface is simple and intuitive, and you can get started quickly
The original factory provides a two-year warranty for the entire machine
There will be no resonance or vibration amplification at any frequency, which is better than passive vibration isolation systems
Active isolation of six degrees of freedom
0.5mS (0.0005 seconds) instantly generates a reaction force to offset the vibration
Product specifications
The anti-vibration function starts from 0.6Hz and has an effect of about -5dB. There is -25dB (equal to 94%) at 5Hz, and at 10Hz, it reaches the best state of -40dB (equal to 99%), and the vertical and horizontal effects are similar. This effect is maintained until 200Hz, at which point the active function no longer works, and higher frequencies are handled by the passive mode mechanical spring.
i4 40*50 cm (load capacity 120kg)
i4 Medium 60*60 cm (load capacity 150kg)
i4 Large 55*70 cm (load capacity 150kg)
Vario Basic series:
VarioBasic40-300 (load capacity 300kg)
VarioBasic60-300 (load capacity 300kg)
VarioBasic90-300 (load capacity 300kg)
The size of the disk can be customized according to your needs
(e.g. 60*90cm or 90*120 cm)
Details
Customized defect inspection equipment
Customizable exclusive defect detection solutions to fully guarantee production quality.
Customized defect inspection equipment is a highly efficient tool that uses advanced technology to accurately and quickly detect defects on product surfaces to ensure product quality and performance. With a high degree of automation and precision, it can help improve production efficiency and reduce costs
Details
MSP provides you with stable and reliable professional services.Contact us
Digital Microscope
AFM
Power Supply
Gold Plating Machine
Active Shock Absorber
Customized defect inspection equipment
Inquiry mailbox
